ERBA XL 640
Technical Specifications
Minimum reaction volume: 180 µl
Reusable reaction cuvettes
2 independent stirrers
3 user-selectable mixing speeds
4 levels of control material can be used
Levey-Jennings graphs
Twin Plot diagrams for monitoring of systematic and random error
Convenient user interface
Connection to LIS
Programmable auto-start from sleep mode, including automatic daily maintenance
Statistical methods of processing results
Data export in selected format.

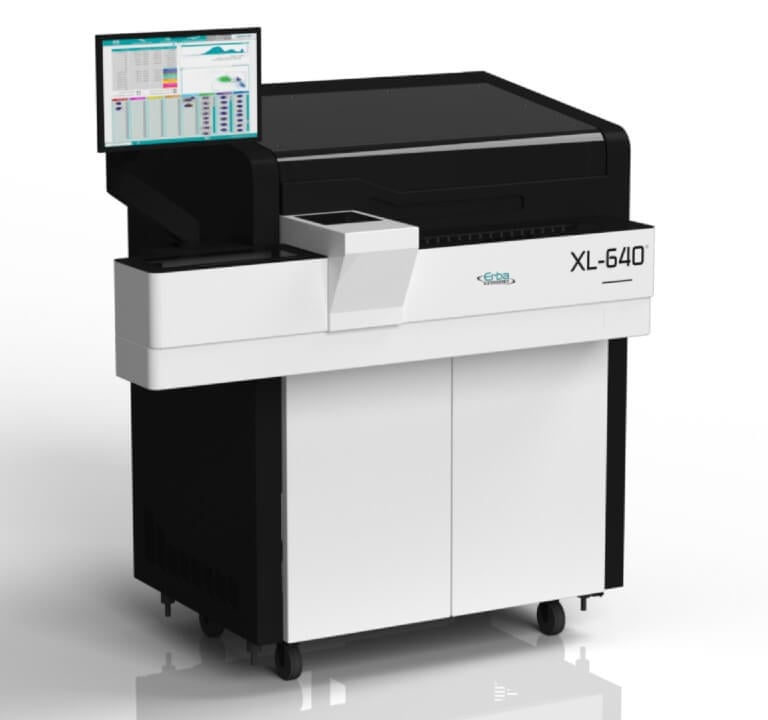

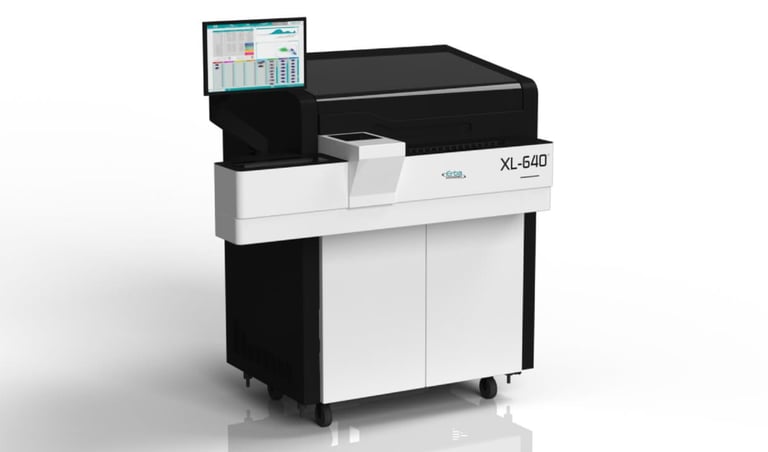

XL 640
Fully automated Clinical Chemistry analyser with throughput of 640 tests/hr with I.S.E (Na/K/Cl/Li) and diffraction grating for high resolution measurement. On board are 50 samples and 56 refrigerated reagent positions with a STAT facility. The XL 640 features extensive quality control, a user-friendly design, and low consumption service.
Operating parameters
Ample volume: 2-70µl (0.2 µl step)
Reagent volume: R1 50-300 µl (1 µl step), R2 10-300 µl (1 µl step)
3 dispensing probes (sample, R1, R2) equipped with a liquid-level sensor and a crash detector
Auto-dilution of samples and calibrators
Clot detection
72 reusable hard glass cuvettes
Possibility of replacement of the individual cuvette
Wash station – cuvette rinsing and drying in an eight-step procedure
Automatic cuvette blank measurement before analysis
80 positions for samples, blanks, standards, calibrators, controls and ISE solutions
Primary tubes 5, 7 and 10 ml, vacuum system tubes and cups
STAT sample with priority in any position
An additional tray for 80 samples is included
56 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor
Reagent compartment with Peltier/air cooler (8-12°C)
Option to use one reagent for several tests simultaneously
Colour indication of sample analysis
Possibility of monitoring the reaction in real time
Reagent volume monitoring
Informative reports on the ongoing analyser status
Operating parameters
Ample volume: 2-70µl (0.2 µl step)
Reagent volume: R1 50-300 µl (1 µl step), R2 10-300 µl (1 µl step)
3 dispensing probes (sample, R1, R2) equipped with a liquid-level sensor and a crash detector
Auto-dilution of samples and calibrators
Clot detection
72 reusable hard glass cuvettes
Possibility of replacement of the individual cuvette
Wash station – cuvette rinsing and drying in an eight-step procedure
Automatic cuvette blank measurement before analysis
80 positions for samples, blanks, standards, calibrators, controls and ISE solutions
Primary tubes 5, 7 and 10 ml, vacuum system tubes and cups
STAT sample with priority in any position
An additional tray for 80 samples is included
56 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor
Reagent compartment with Peltier/air cooler (8-12°C)
Option to use one reagent for several tests simultaneously
Colour indication of sample analysis
Possibility of monitoring the reaction in real time
Reagent volume monitoring
Informative reports on the ongoing analyser status
XL 640
Fully automated Clinical Chemistry analyser with throughput of 640 tests/hr with I.S.E (Na/K/Cl/Li) and diffraction grating for high resolution measurement. On board are 50 samples and 56 refrigerated reagent positions with a STAT facility. The XL 640 features extensive quality control, a user-friendly design, and low consumption service.
Technical Specifications
Minimum reaction volume: 180 µl
Reusable reaction cuvettes
2 independent stirrers
3 user-selectable mixing speeds
4 levels of control material can be used
Levey-Jennings graphs
Twin Plot diagrams for monitoring of systematic and random error
Convenient user interface
Connection to LIS
Programmable auto-start from sleep mode, including automatic daily maintenance
Statistical methods of processing results
Data export in selected format.
