ERBA XL 200
Technical Specifications
Sample volume: 2-70 µl (in 0,2 µl step)
Reagent volume: R1 50-300 µl (in 1 µl step), R2 10-200 µl (in 1 µl step)
Dispensing probe equipped with liquid -level sensor and crash detector
Auto-dilution of samples and calibrators
Convenient user interface
Connection to LIS
Statistical methods of processing results
Data export in selected format

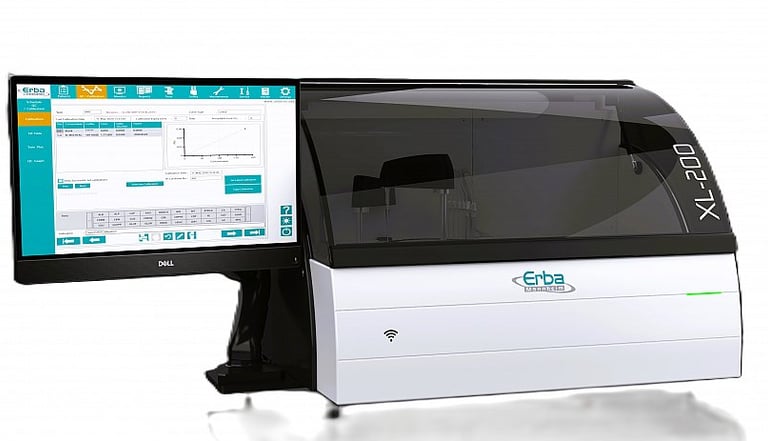

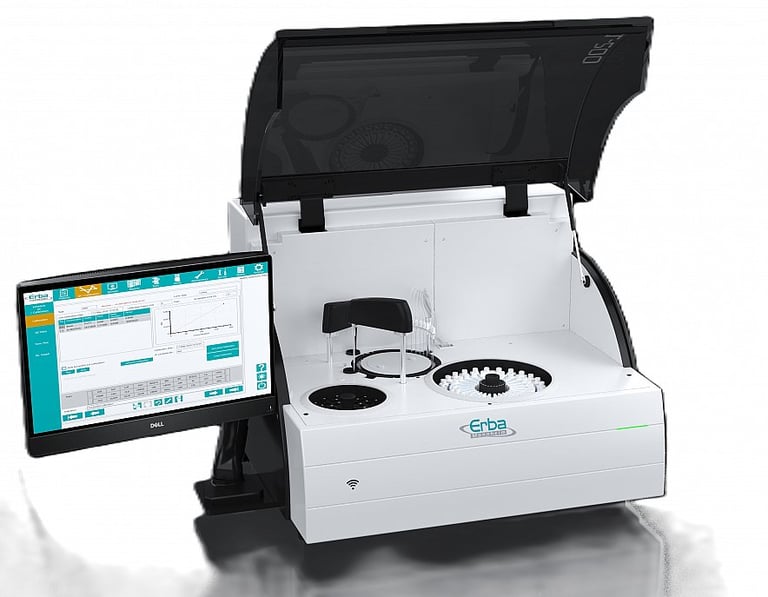

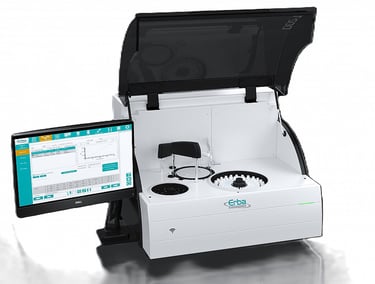

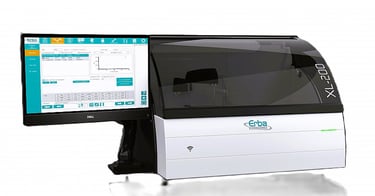

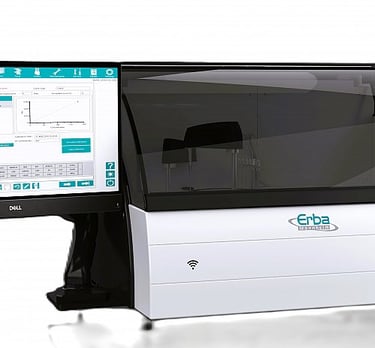

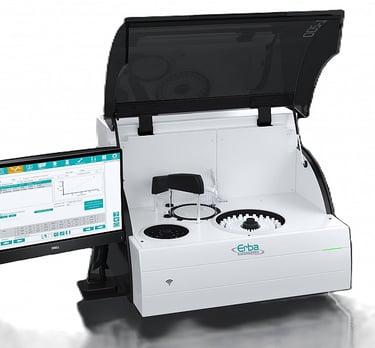

XL 200
Fully Automated Random Access Clinical Chemistry Analyser with a throughput of 200 tests/hr (photometric test) and 400 tests/hr with ISE (Na/K/Cl/Li). 30 Position Reagent Tray with On-board cooling, convenient software and extensive quality control menu
Operating parameters
Minimum reaction volume: 180 µl.
Reusable reaction cuvettes.
Independent stirrers.
3 user-selectable mixing speeds.
4 levels of control material can be used.
Levey-Jennings graphs.
Twin Plot diagrams for monitoring of systematic and random error.
45 reusable hard glass cuvettes.
Possibility of replacement of the individual cuvette
Wash station – cuvette rinsing and drying in 8 steps
Automatic cuvette blank measurement before analysis
Reaction temperature 37°C ± 0,2°C
39 positions for samples, blanks, standards, calibrators, controls and ISE solutions.
Primary tubes 5, 7 and 10 ml, vacuum system tubes and cups.
STAT sample with priority in any position.
Possibility of programming up to 99 virtual trays.
50 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor.
Reagent compartment with Peltier/air cooler (8-12°C)
Option to use one reagent for several tests simultaneously.
Colour indication of sample analysis.
Possibility of monitoring the reaction in real time.
Reagent volume monitoring.
Informative reports on the ongoing analyser status.
