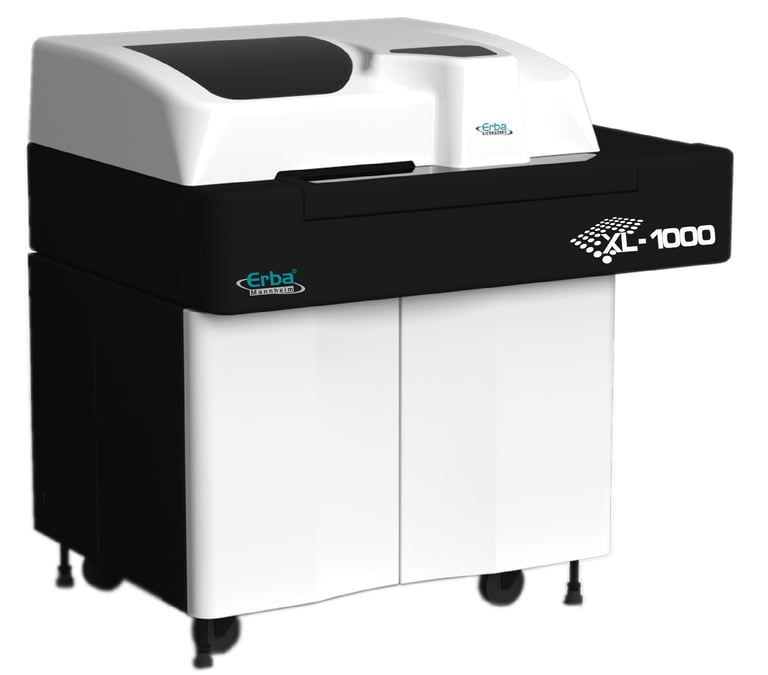

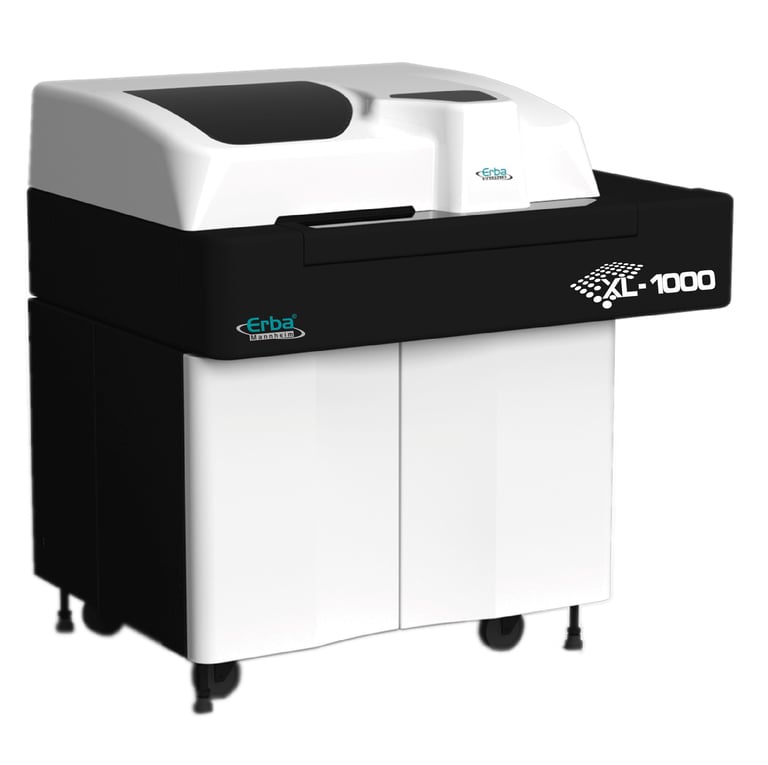

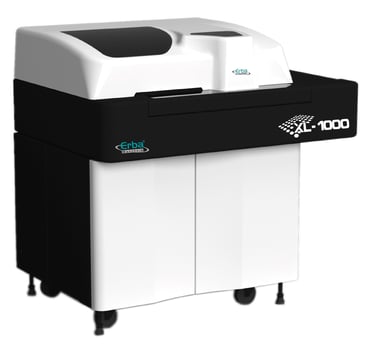

ERBA XL 1000
Technical Specifications
Discrete, open, automated, random access, patient prioritised, 1/2/3 reagent system
DISPENSING OF SAMPLES AND REAGENTS
Sample volume: 2-60 µl (0.1 µl step), 70 µl with ISE
Reagent volume: 120 µl – 550 µl
3 dispensing probes ( R1, R2/R3) equipped with a liquid-level sensor and crash detector
Auto-dilution of samples and calibrators
Clot detection
Sample - Serum, urine, plasma, CSF and other
Minimum reaction volume: 180 µl
Reusable reaction cuvettes
2 independent stirrers
3 user-selectable mixing speeds
Convenient user interface
Connection to LIS
Programmable auto-start from sleep mode, including automatic daily maintenance
Statistical methods of processing results
Data export in selected format
XL 1000
XL 1000 – new member of the XL family, modern, fully automated Clinical Chemistry analyser guaranteeing high resolution measurement with automatic sample conveyor for comfortable workflow in laboratories with high sample throughput.
Operating parameters
4 levels of control material can be used
Levey-Jennings graphs
Twin Plot diagrams for monitoring of systematic and random error
147 reusable hard glass cuvettes
Possibility of replacement of the individual cuvette
Wash station – cuvette rinsing and drying in a nine-step procedure
Automatic cuvette blank measurement before analysis
23 racks
115 sample positions on the automatic autoloader
Primary tubes 5, 7 and 10 ml, vacuum system tubes
Barcode reader for sample identification
With 43 cooled positions each
Barcode reader for reagent identification
20 ml, 50 ml reagent containers, 5 ml tube with adaptor
Option to use one reagent for several tests simultaneously
45 positions
Can be used for blank, controls, STAT samples
Colour indication of sample analysis
Possibility of monitoring the reaction in real time
Reagent volume monitoring
Informative reports on the ongoing analyzer status
