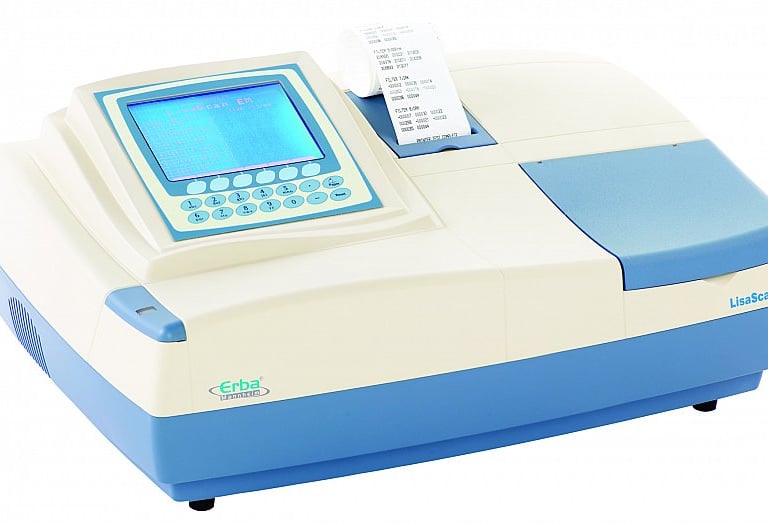

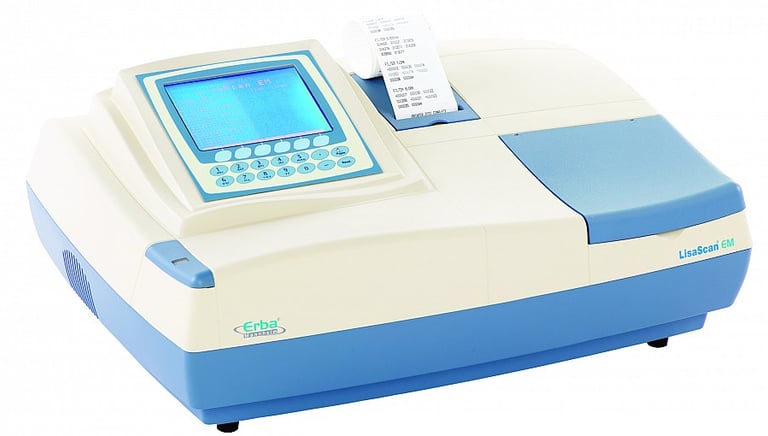

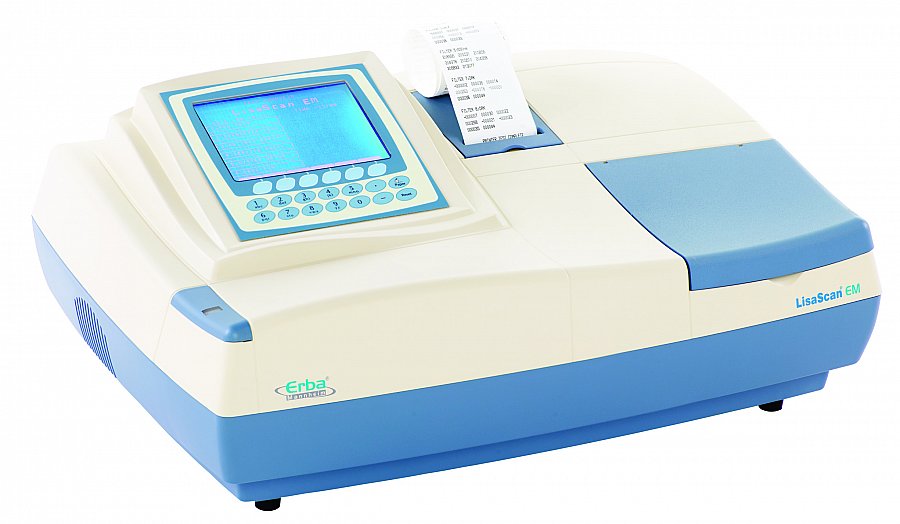

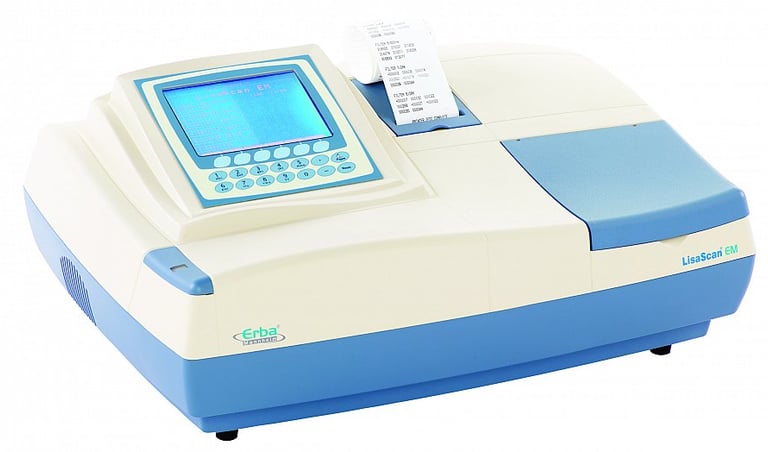

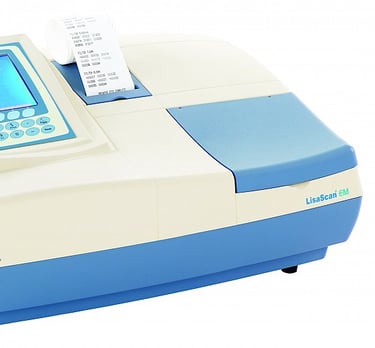

LisaScan EM

LisaScan EM

Automated ELISA microplate reader

FEATURES

• Memory for 100 programs

• Quantitative, qualitative or semi-quantitative determination

• Continuous and kinetic measure point

• Several modes of measurement

• 8 channel reading

• Open system

• Product Applications:

Technical Parameters

• Optical system: 8-channel fibre optics to measure 8 vertical channels

• Light source: Tungsten halogen lamp (13,8V / 50W)

• Detector: Si photodiode

• Filters: standard equipped 405, 450, 492, 630 nm + optional 578, 700 nm

• Photometric resolution: 0,001 Abs

• Measurement scale: 0 ~ 3 Abs

• Accuracy: < 1% at 2.5 OD

• Operating conditions: 20-40°C

• Continuous mode: 8s / one wavelength 96-well plate

• Kinetic mode: 17s / one wavelength 96-well plate

• Size: 502 x 369 x 216 mm

• Weight: 7 kg
