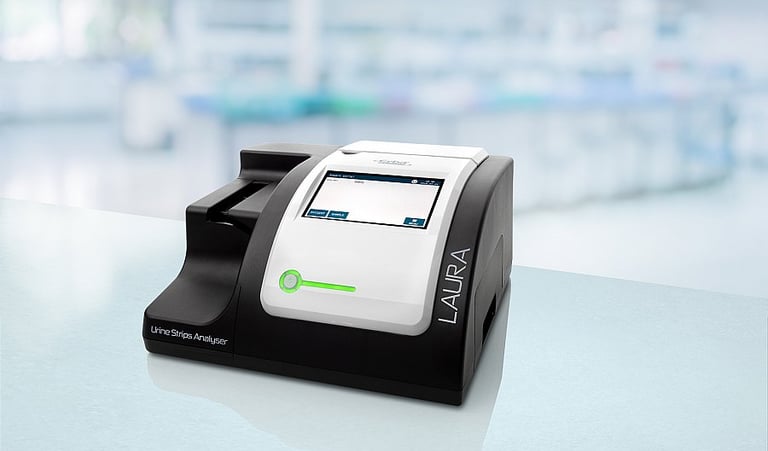

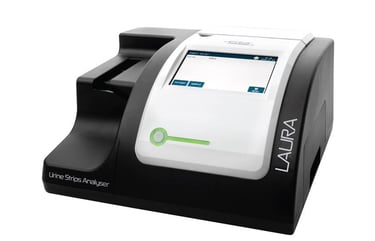

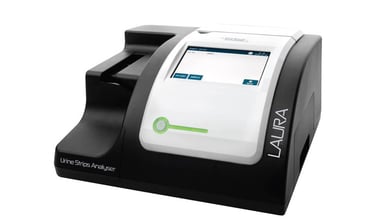

ERBA Urine Analyser LAURA

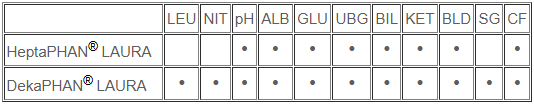

Two types of diagnostic strips, which differ in the number of parameters, are intended for use with the device:
Parameters which can be determined by using diagnostic strips are: pH, protein (ALB), glucose (GLU), ketones (KET), urobilinogen (UBG), bilirubin (BIL), blood (BLD), as well as specific gravity (SG), nitrites (NIT) and leucocytes (LEU). LAURA® identifies the type of strip used/inserted automatically. The compensation field (CF) allows the elimination of the different colours of the urine samples.

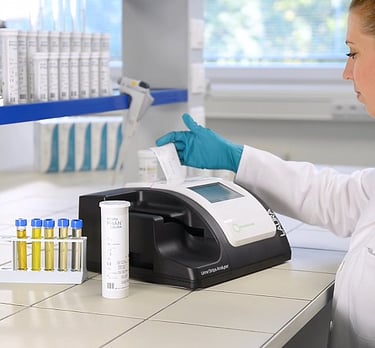

Samples to be analysed can be entered easily, either by entering the ID of the patient or using a simple sequence of inserted samples. It is possible to print the results directly on a built-in thermo printer, the advantage of which is the print speed (12 results per minute) and quietness of operation. The manipulation of the printer for inserting the thermo paper is easy.
LAURA® automatically check itself after each switch-on. The calibration of LAURA® is checked by the control mode from the SW menu. The special control strips are used for checking the calibration and the correct function of the optical parts. The control grey strips are a part of a delivery, or they can also be bought separately also.

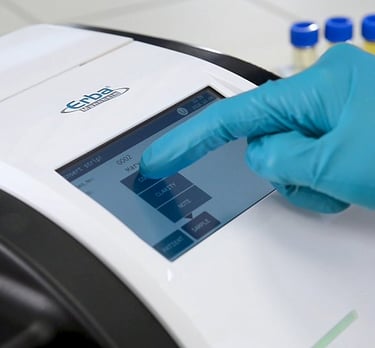

LAURA® has a wide-ranging software menu, which allows the user to make, for example, the own settings for inserting of the samples, a choice of units and the order of measurement parameters without reference at the order on the strip. The SW allows adding the short commentary to each measurement, to choose the language for the communication with the reader (there are 8 languages) and a lot of other user-defined settings.
The LAURA® has a standard interface (RS 232) for a connection to the Laboratory Information System (LIS). The interface is suitable for connection with a PC, also. The LAURA® has the standard connection (PS/2) for connection with an external keyboard or a barcode reader.
The software of LAURA® contains a special mode for keeping cleanliness and general hygiene during everyday work. This mode allows very easy access to all parts that are in contact with urine. This mode eases the maintenance and the cleaning of the reader. It is offered as a single-use plastic part, which can help with more comfortable keeping of hygiene during everyday working, and is intended for the waste container. The LAURA® automatically recognises if the waste container is too full and gives a message about it on the display.
Technical Specifications
Description:
Semi-automated semi-quantitative reflex photometer
Measuring using a CCD camera/LED
Wavelengths: 535, 610 nm
Latency: 60 s
Capacity: 400 strips per hour

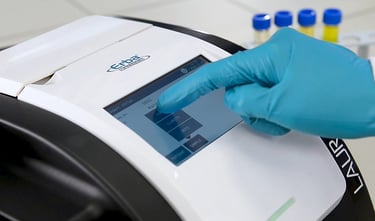

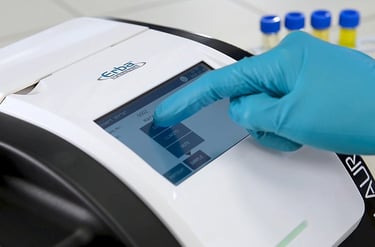

Touch screen (LCD display): 5“ (320x240) colour TFT
User-defined setting option
Built-in thermo printer, print speed 12 results per minute
External communication via RS-232 interface
Optional connection to a PC, an external keyboard or a barcode scanner
Memory capacity: last 1000 measurements
PHAN® strips intended for the analysis:
DEKAPHAN® LAURA
HEPTAPHAN® LAURA
Working conditions:
External power source
Parameters of the external power source 90-230V / 50-60Hz
Supply in working regime 45W, in standby mode 6W
Temperature: optimum range 20-25 °C, relative humidity 20-90%
Weight: 5 kg incl. the adapter
Dimensions 430 x 290 x 170 mm
Auxiliary material
Hygienic waste single-use container
Urine Analyser Laura

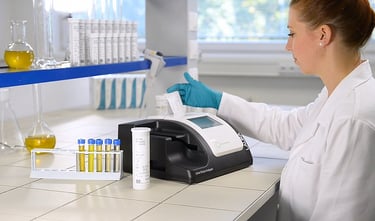

LAURA® is an effective solution for objective standard and high-grade measurement of urine samples. The reader is a semi-quantitative semi-automatic, which contains advantages as easy control using a touch screen, high speed and capacity for routine operation in laboratories of clinical chemistry.
