ECL 760

Technical specifications.

• 7 measuring channels.

• 8 incubation positions at 37°C +/- 0.2°C for reaction cuvettes.

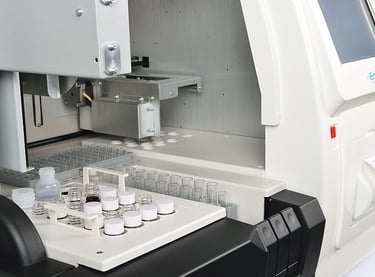

• 23 refrigerated and stirrable positions for reagents, diluents and cleaners.

• 27 positions for samples, primary tubes, vacuum system tubes and cups.

• 72 positions for reaction cuvettes.

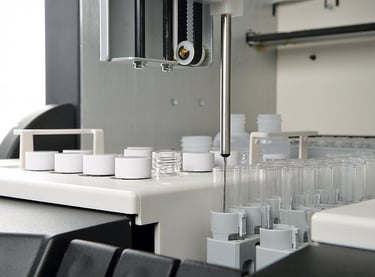

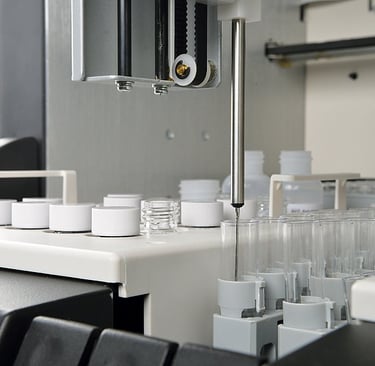

• Pipetting needle with automatic preheating, collision protection, liquid level detection, and control of reagent volumes.

• Volume of reaction liquid: 150-300 µl, pipetting volume: 4-200 µl.

• Parameters: PT, APTT, TT, Fibrinogen, Coag. factors, D-Dimer, ATIII, Protein C, Protein S, and Lupus Anticoagulants.

• Built-in thermal printer.

• RFID for the security of use.

• Quality Control: 12 QC user-defined QC material.

• Calibration: Automatic, manual, 6-point calibrations.

• Storage capacity of more than 10,000 data curves.

• Program with an automatic Levey-Jennings graph monitor system performance

• Comprehensive Erba Haemostasis reagent line.

• Universal power supply 100-240V~50/60Hz.

• Dimensions: 650 x 580 x 510 mm.

• Weight: 53 kg.

• 2 USB ports.

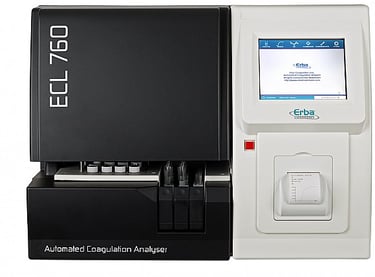

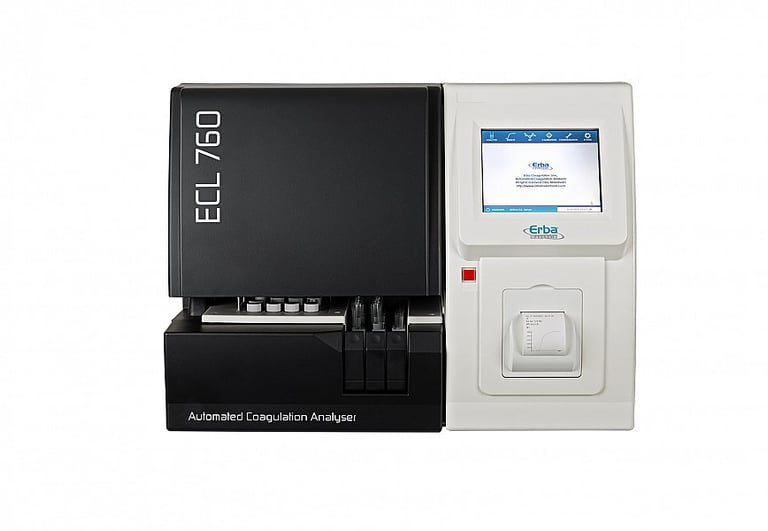

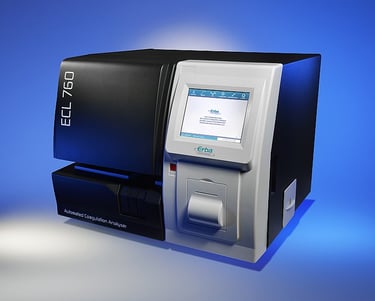

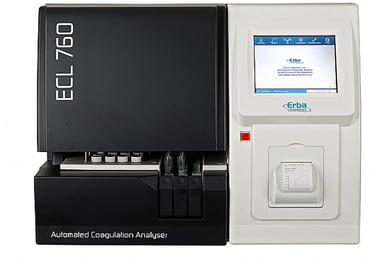

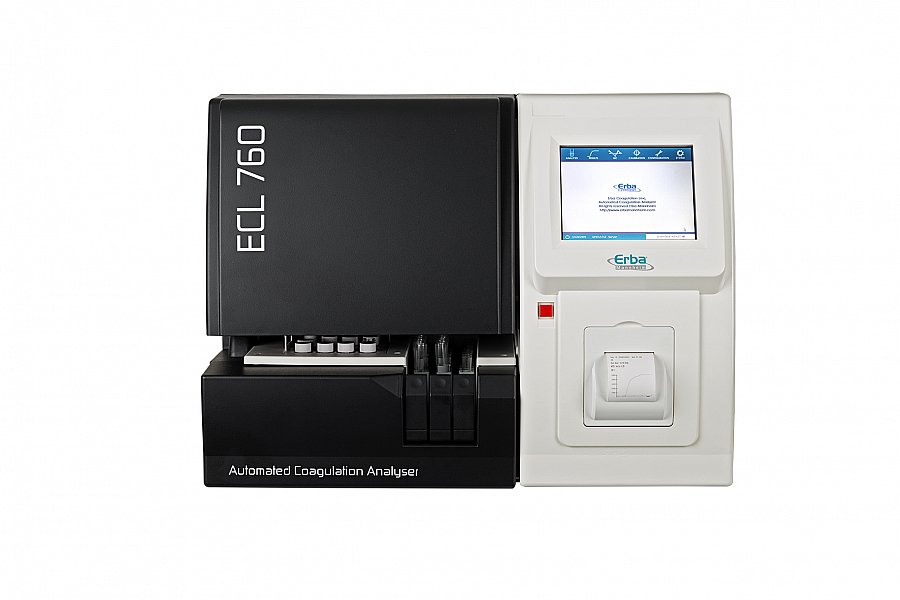

ECL 760

Fully Automated Coagulation Analyser with advanced random access system for clotting, immunologic and chromogenic assays for routine and STAT testing.

OPERATING PARAMETERS

• Bi-directional LIS communication

• Barcode reader for sample identification

• 60 PT tests/hour

• Colour touch screen and the possibility to connect an external keyboard, a mouse and a printer.
