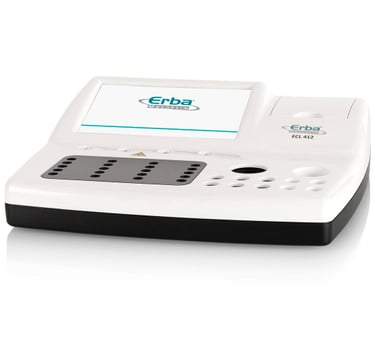

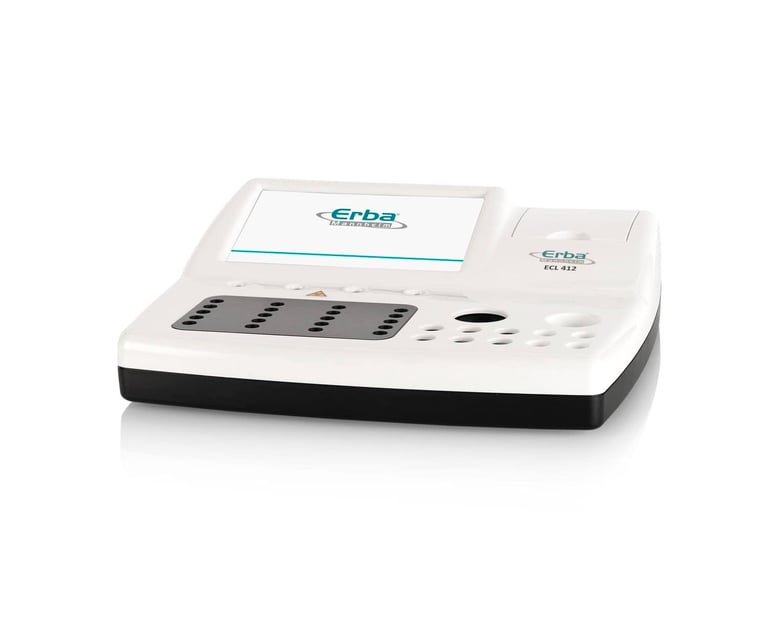

ECL 412

Technical specifications.

• 4 measuring channels

• 20 reaction cups incubation positions at 37°C +/- 0.2°C

• 12 reagent positions, 7 positions for 37°C +/- 0.2°C incubated reagents, including 1 for vial with programmable stirring

• parameters: PT, APTT, TT, Fibrinogen, Coag. Factors, D-Dimer, ATIII, Protein C, Protein S, Lupus Anticoagulants

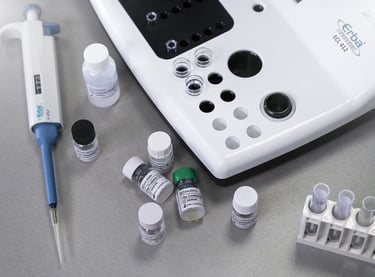

• Automatic start with standard pipettes

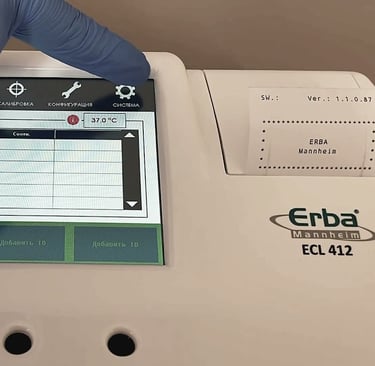

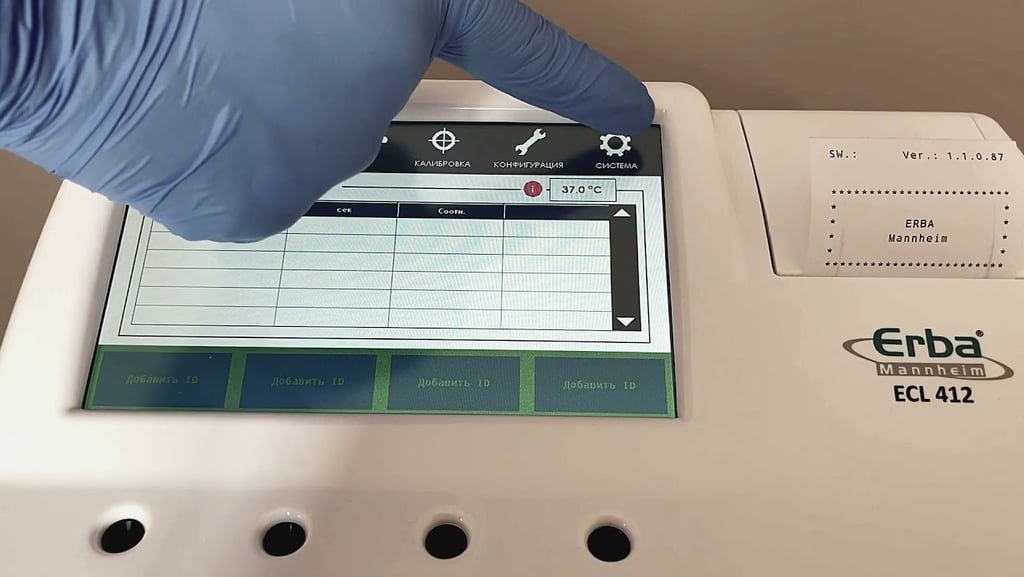

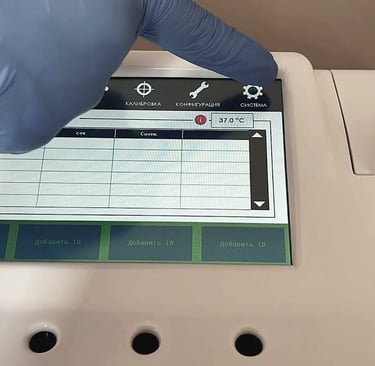

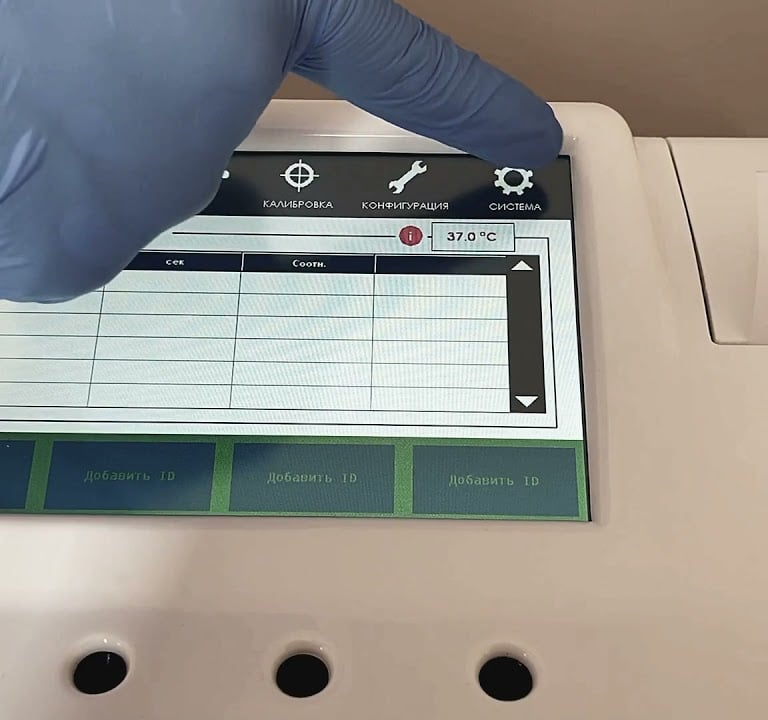

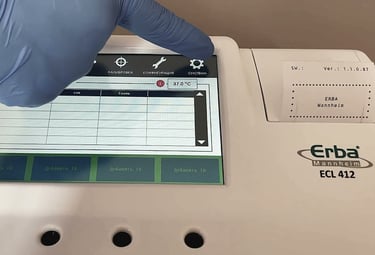

• 7‘‘ Resistive colour touch-screen

• Built-in thermal printer

• RFID for the security of use

• Possible connection to LIS

• Possible connection to a barcode reader or an external keyboard

• Monitoring of expirations of reagents, calibrators and controls

• Quality Control program with an automatic Levey Jennings graph monitor system performance

• Comprehensive Erba Haemostasis reagent line

• Universal power supply 100-250V~47-63Hz

• dimensions: 300 x 290 x 90 mm

• weight: 3 kg

• 3 USB ports (2 x type A, 1 x type B)

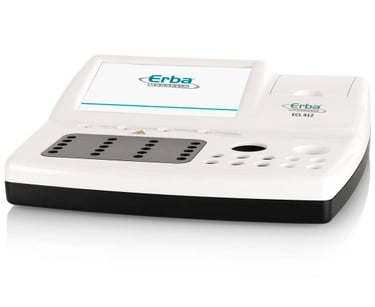

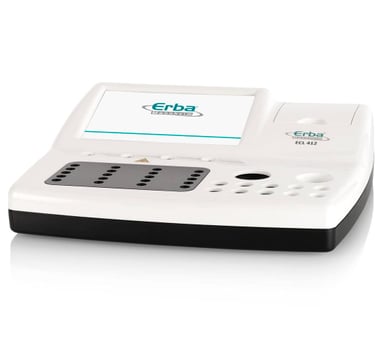

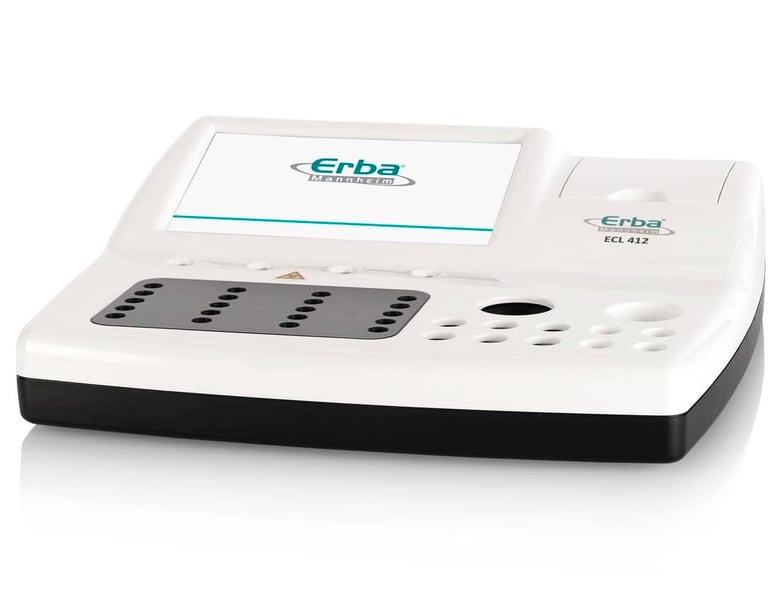

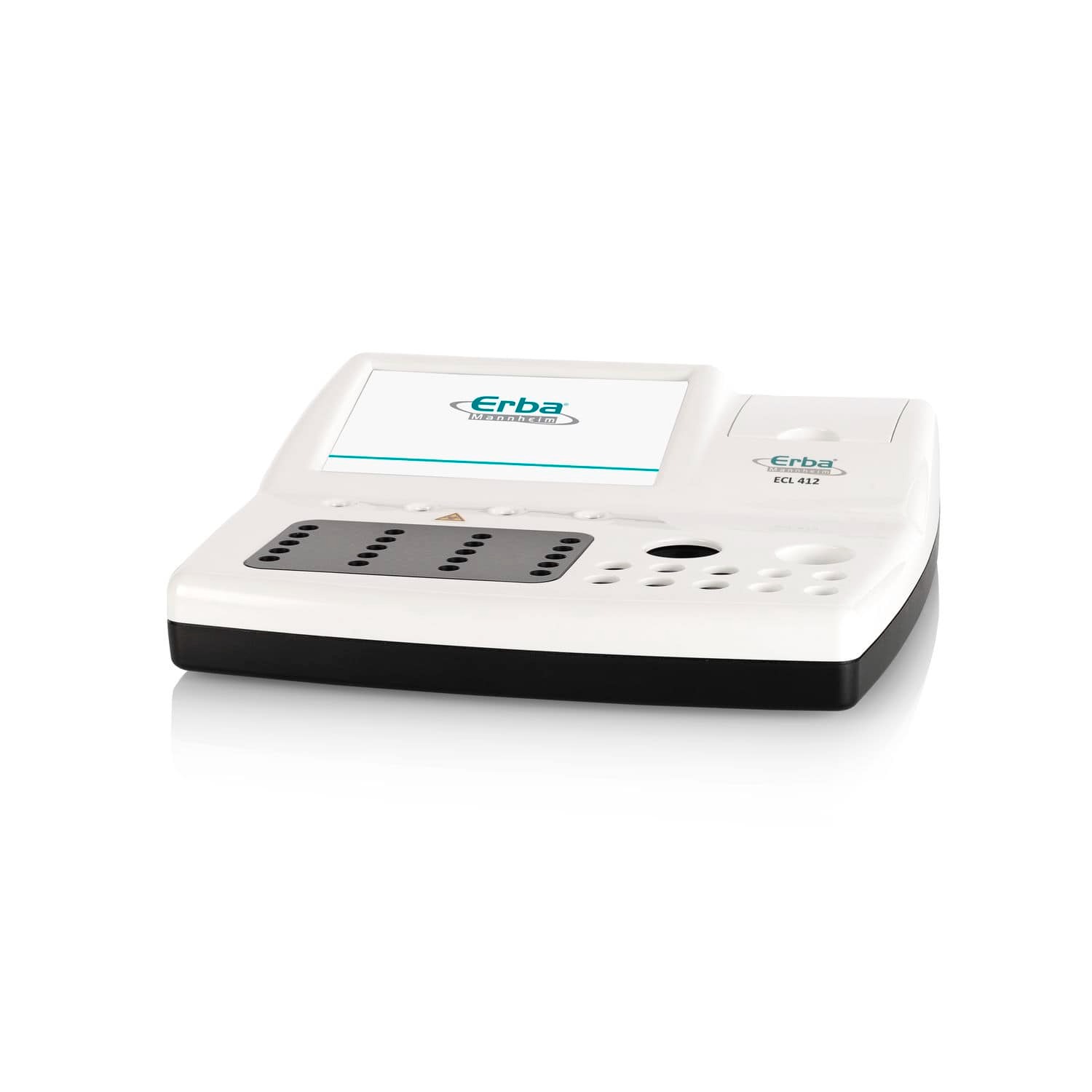

ECL 412

4 Channel semi-automated coagulometer which performs all types of haemostasis assays. It is ideal for small and medium-sized laboratories.

OPERATING PARAMETERS

• Clotting assays by light scattering at 640 nm

• Immuno-turbidimetric assays at 800 nm

• Chromogenic assays by colourimetry at 405 nm
