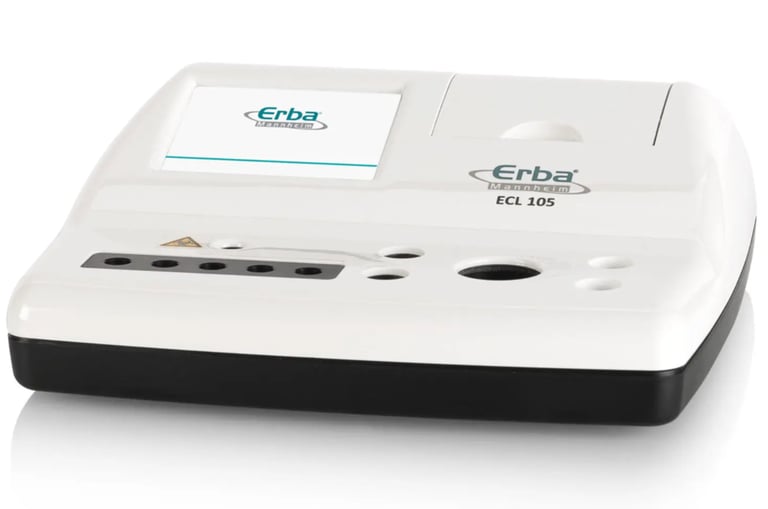

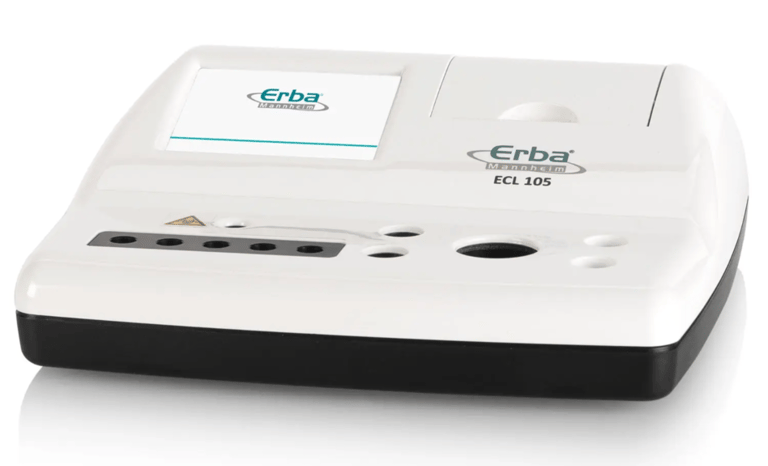

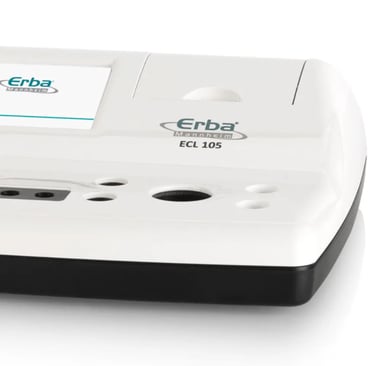

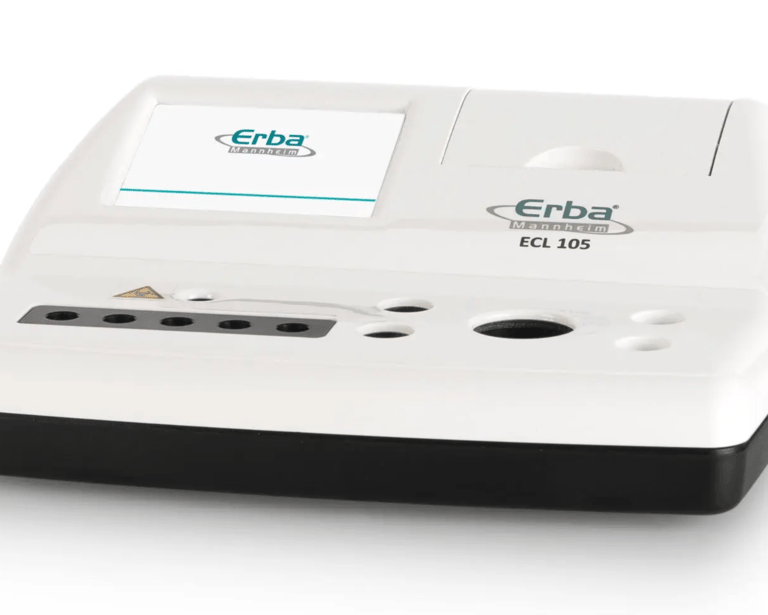

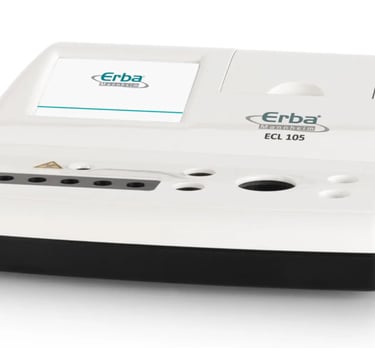

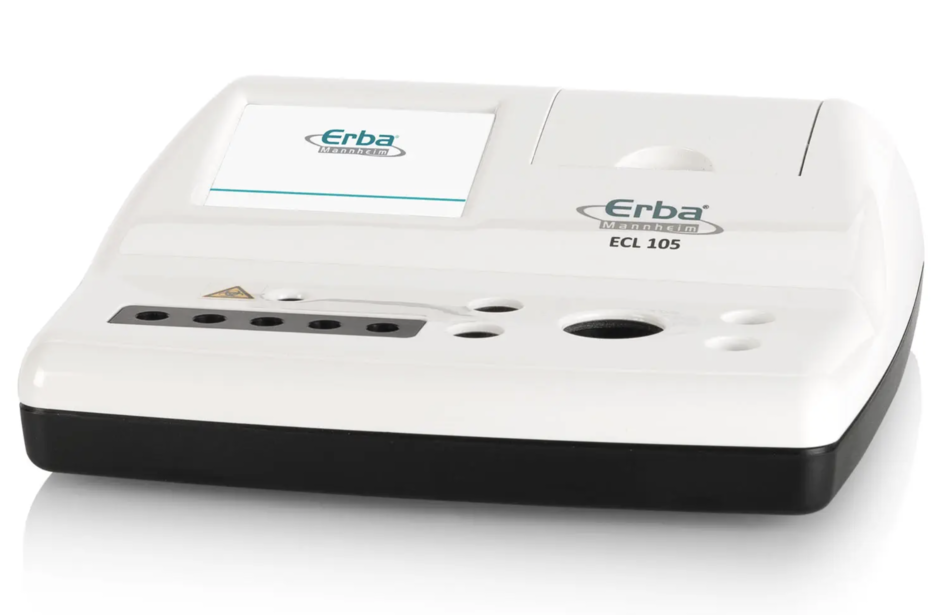

ECL 105

Technical specifications.

• 1 measuring channel

• 5 reaction cups incubation positions at 37°C +/- 0.2°C

• 5 reagent positions, 3 positions for 37°C +/- 0.2°C incubated reagents, including 1 for vial with programmable stirring

• parameters: PT, APTT, TT, Fibrinogen, Coag. Factors, D-Dimer, Protein S, Lupus Anticoagulants

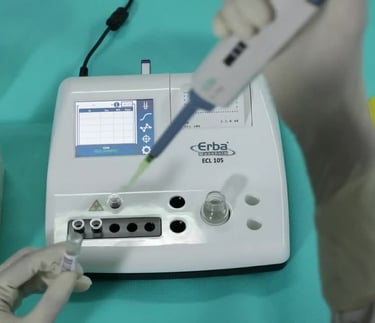

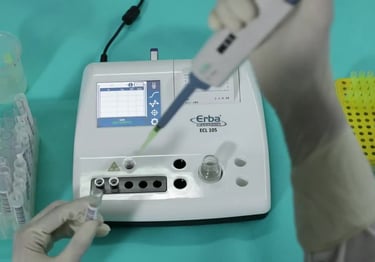

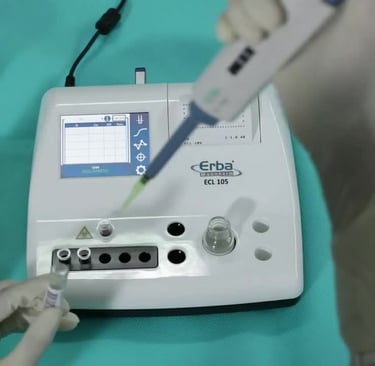

• Automatic start with standard pipettes

• 3,5‘‘ Resistive colour touch-screen

• Built-in thermal printer

• RFID for the security of use

• Possible connection to LIS

• Possible connection to a barcode reader or an external keyboard

• Monitoring of expirations of reagents, calibrators and controls

• Quality Control program with automatic Levey Jennings graph monitor system performance

• Comprehensive Erba Haemostasis reagent line

• Universal power supply 100-250V~47-63Hz

• dimensions: 216 x 205 x 75 mm

• weight: 1 kg

• 2 USB ports (1 x type A, 1 x type B)

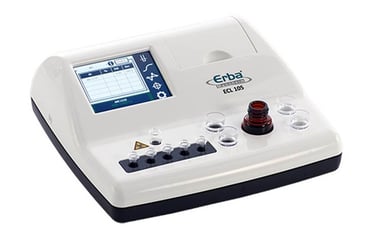

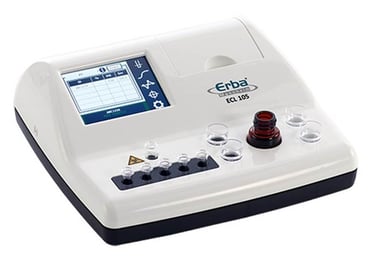

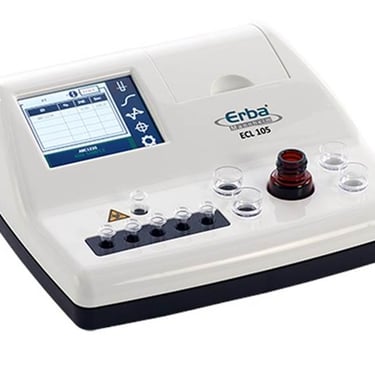

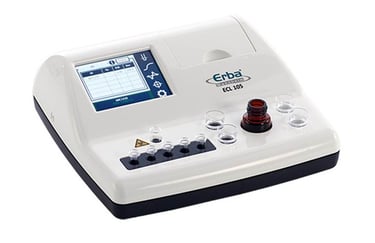

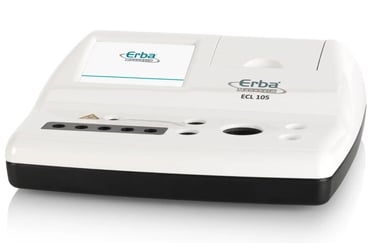

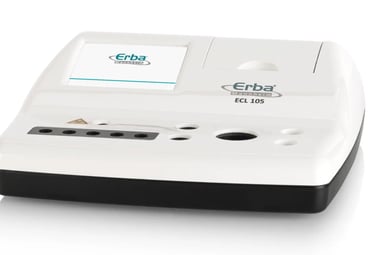

ECL 105

1 Channel semi-automated coagulometer which performs measurements of all clotting assays as well as D-Dimer. It is ideal for small laboratories.

OPERATING PARAMETERS

• Clotting assays by light scattering at 640 nm

• Immuno-turbidimetric assays at 800 nm
