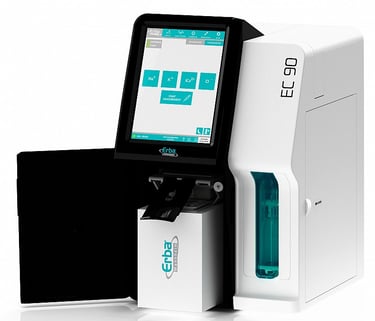

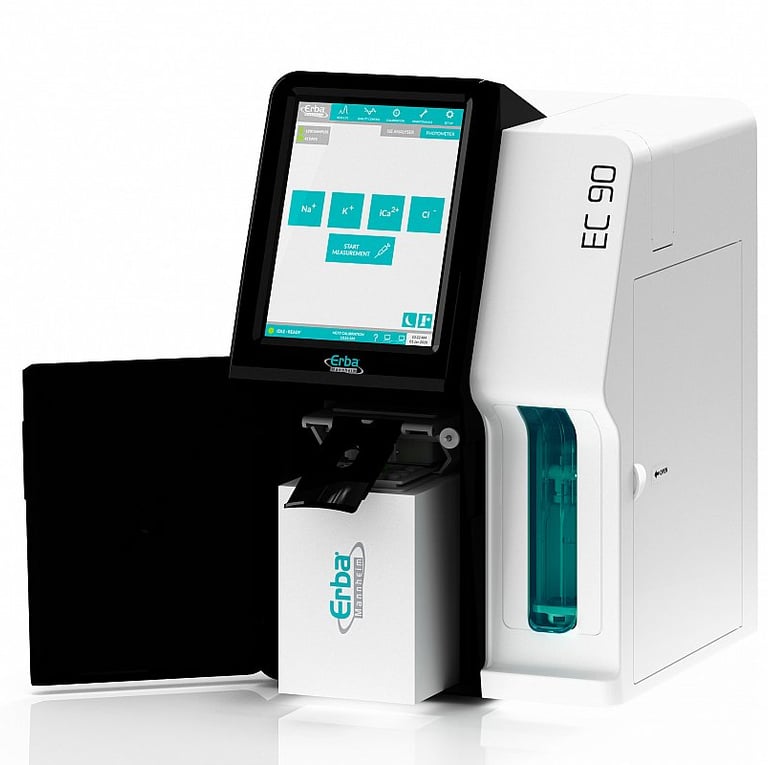

ERBA EC 90

Technical specifications.

• 8.5-inch colour touch screen

• 600 x 800 pixel graphic display

• Power - 100-240 VAC 50/60 Hz 80 VA

• Dimensions - 337mm (D) x 273mm (W) x 422mm (H)

• Weight <8 kg

• built-in, 24-column thermal printer

• Operating Conditions- 15-35ºC (59-95°F) / 15-90% humidity

• Microprocessor controlled

• Connectivity - 2 x USB, RS 232, LAN

  ~ Optional Equipment

• Barcode Scanner

• Sample/Patient ID,

• QC Materials Data

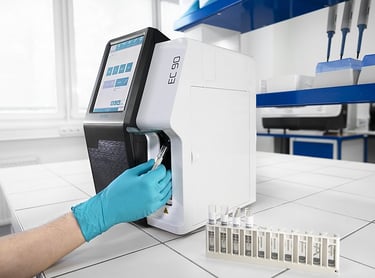

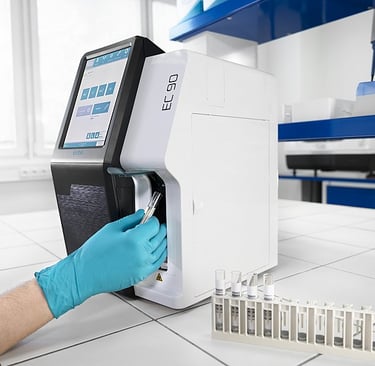

EC 90

State-of-the-art technology using fully automated production methods. Integrated reference sensor, automatic calibrations and quality reports. High-quality components for long life and result stability. Measuring Na, K, Cl and also iCa. Really small sample volume, super-fast analysis time, together with low maintenance and excellent analytical performance. The New EC 90 ISE analyser takes laboratory electrolyte measurements to new heights. The linearity on all the parameters extends above clinically required levels, and within-run precision is <1% CV.

OPERATING PARAMETERS

• Parameters - Na+, K+, Ca++, Cl-

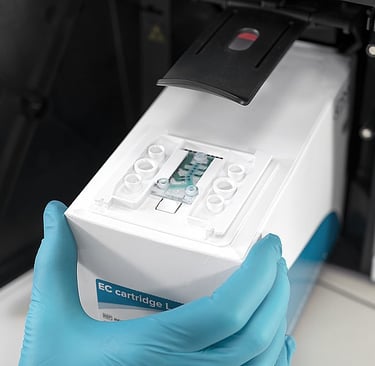

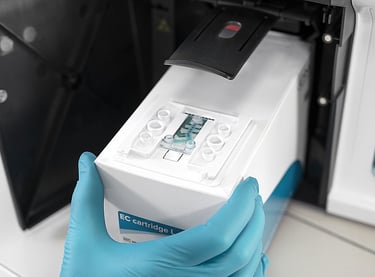

• Electrochemistry, thick film biosensor cartridge

• Direct measurement

• Sample Type - whole blood, plasma, serum,

  dil. urine, aqueous sol.

• Sample Volume - 35 and ≥70 μL measuring modes

• Sample Temperature - 15–35 °C

• Throughput - 100 samples/hour

• Analysis Time - 35 sec

• Data Storage - 10000 samples

• Data Management - fully functional QC with Levey-Jennings and Westgard rules, programmable reference range, and advanced flagging, Bi-directional LIS

• Language/s - English & others on demand

• 1-point calibration, automatic 1-point calibration with every sample or on demand

• 2-point calibration, automatic 2-point calibration every 12 hours or on demand

• Standby Modeis automatically controlled or user-defined
