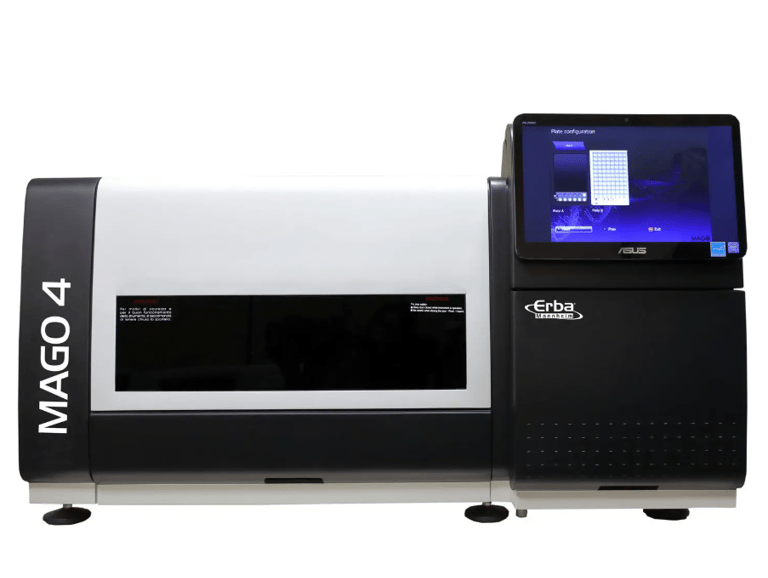

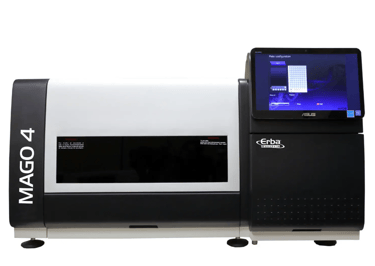

Immunology analyser Mago 4

Technical Specifications

• Wide range of EIA (ELISA) and IFA tests:


  Autoimmune disease

  Is®ANA ELISA screen, Is®ENA ELISA screen,

  ANA Hep-2 Cells IFA, …


  Infection disease

  Syphilis, CMV, EBV, Toxoplasma, ...


  Allergy and food intolerance

  IgE, spec. IgE, liquid allergens, Anti-Gliadin,

  Anti-Tissue-Transglutaminase

Mago 4

Automation of ELISA and IFA tests. Open immunoanalytical system - Custom/user programmable channels. Automation of ELISA, IFA and agglutination tests processing simultaneously in one batch, 104 samples, barcodes, disposable tips. Performs up to 12 ELISA tests (on 4 microplates), or up to 16 IFA tests (slides), Levey-Jennings and Westgard's rules program on board.

Operating parameters

• Simultaneously, 4 microplates or 16 IFA slides in one run

• Up to 12 ELISA methods or 16 IFA methods

• 104 sample positions and 192 predilution positions

• 27 positions for reagents, standards and controls

• Integrated barcode reader

• Bidirectional connection with LIS (RS232, LAN, USB)

• Liquid level sensor

• Optimisation of incubation conditions

• 2 wash solutions (2 x 2l)

• Test results validation based on predefined conditions/rules

• Free space for programming up to 500 methods

• Integrated ELISA reader, halogen lamp, interference filters 405, 450, 492, 620 (two free positions)

• Westgard's rules and Levey-Jennings charts on board

• Windows XP software platform

• Dimensions (120 x 69,5 x 60 cm)

• Weight 85 Kg
